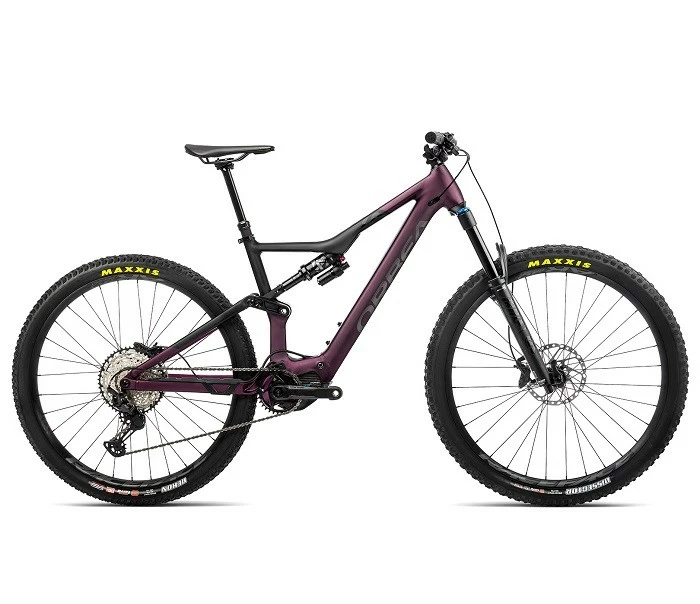

Orbea – E-Komplettbike Trail Rise H15 Metallic Mulberry/Black XL

Fahrwerk:
Rahmen:
Orbea Rise Hydro 2022 140mm travel 29″ Boost 12×148
Dämpfer:
Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Gabel:
Fox 36 Float Performance 150 Grip 3-Position QR15x110
Steuersatz:
Acros Alloy 1-1/8 – 1-1/2″ Integrated

Übersetzung:
Kurbel:
e*thirteen e*spec Direct Mount 32T Boost
Kurbelarm:
e*thirteen Plus Alu
Hebel:
Shimano SLX M7100 I-Spec EV
Kassette:
Shimano CS-M7100 10-51t 12-Speed
Schaltwerk:
Shimano XT M8100 SGS Shadow Plus
Kette:
Shimano M6100
Kettenführung:
Orbea Rise chainguide

Lenkerzone:
Lenker:
Race Face Aeffect 35 20mm Rise 780mm
Vorbau:
Race Face Aeffect R 35mm interface
Bremsen:
Shimano M6100 Hydraulic Disc
Bremsscheiben:
180mm Front /180mm Rear

Laufradsatz
Race Face AR 30c Tubeless Ready
Reifen:
Maxxis Dissector 2.40″ 60 TPI 3CMaxxTerra Exo TLR
Reifen:
Maxxis Rekon 2.40″ 120 TPI 3CMaxxTerra Exo+ TLR

Sitzzone:
Sattelstütze:
OC Mountail Control MC20, 31.6mm, Dropper
Sattelstütze Remote:
Shimano SL-MT500 I-Spec EV
Sattel:
Fizik Taiga S-alloy rail

Motor/Akku-Einheit
Motor:
Shimano EP8-RS
Akku:
Orbea Internal 540Wh (Optional 252Wh Range Extender)
RANGE EXTENDER
Display:
Shimano SC-E7000
Ladegerät:
Orbea Smart Charger (42V-4A)
Remote:
Shimano E7000 switch unit for assist

Modell: Orbea Rise H15, 2023, XL
